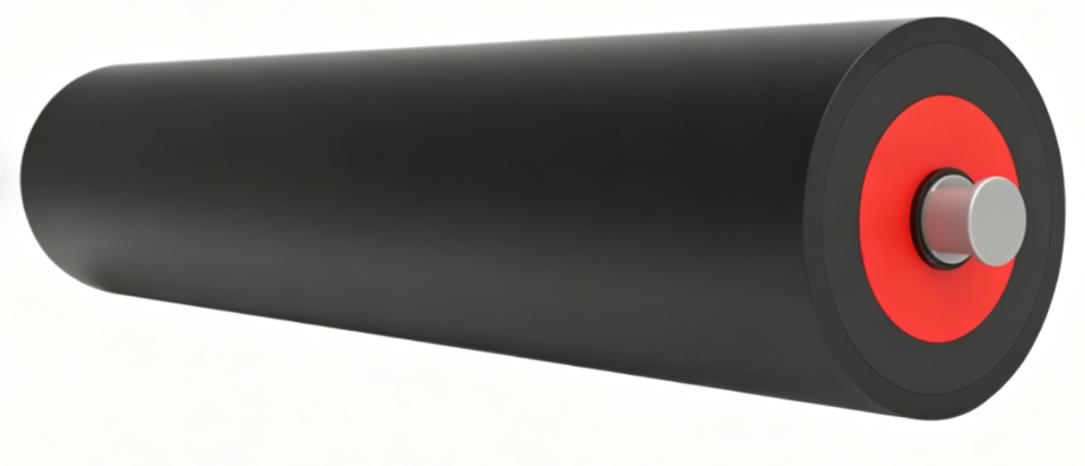

ANTIWEAR offers standard steel roller, impact roller for various applications.
Roller diameter includes 102, 114, 127, 133, 152, 159,178,194mm and others as request.
Specification of rollers meet CEMA, ISO standard.
Specific requirement on dimension, configuration is based on demands.

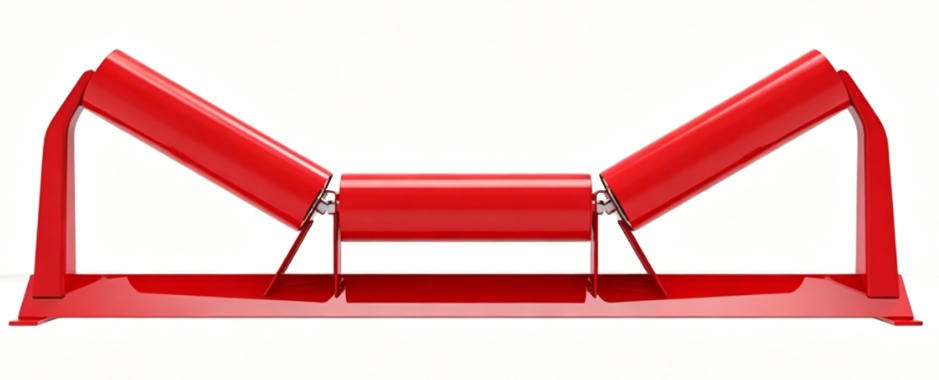

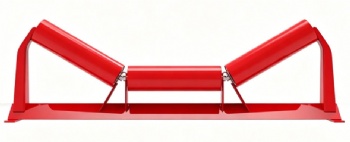

Three Roll Trough 20º – 45º Range, most commonly used configuration for Carry Idler Sets.
Offset type used to assist belt tracking for mainly light and medium duty, up to 1200mm belt.
Inline used mainly for medium to heavy duty and belt widths above 1200mm.

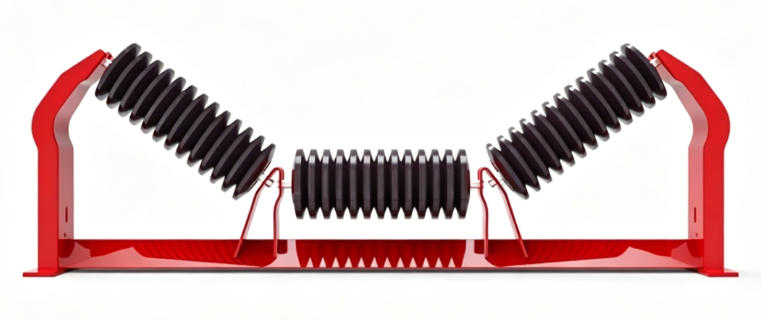

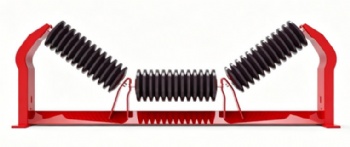

Three Roll Trough Impact 20º – 45º Range Installed at the loading point to absorb the shocks and to help protect against belt damage.
Retractable sets are also used in the skirt area, allowing the rollers to be changed out without disturbing the skirting.
Three Roll Adjustable transition Idlers, used in the transition area, usually in increments to a maximum range of 15º. Used at head and tail position to support the belt as it goes from the trough to the flat position.
Single Roll Flat Carrying/Return Plain Idlers.
Standard angle is 10º. Other angle is available.
