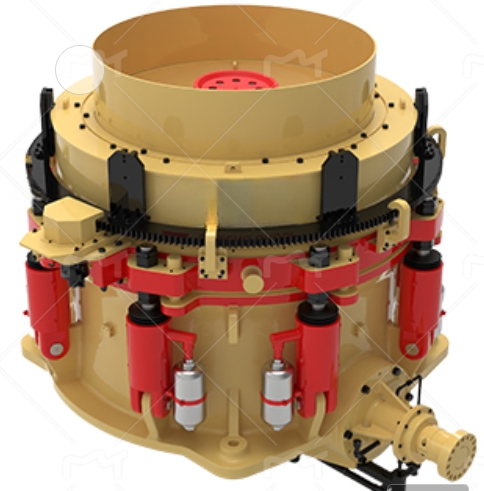

H Series Multi-cylinder Hydraulic Cone Crusher is a fully hydraulic cone crusher with excellent level developed on the basis of absorbing outstanding crushing technology and many years of crushing experience.
It utilizes the research and development concept of laminated crushing, high-precision manufacturing process and advanced intelligent control technology. It can be widely used in metallurgy, construction, hydropower, transportation, chemical industry, building materials and other industries.
Model | Material size/mm | Feeder Size(mm) | Output Size/mm | Handling Capacity(t/h) | Power (kw) | |
Close Side | Open Side | |||||
H700 | 180 | 51 | 105 | 6-16 | 314-475 | 450 |
95 | 133 | 10-19 | 410-590 | |||
127 | 178 | 13-25 | 525-695 | |||
152 | 203 | 16-25 | 588-756 | |||
400 | 253 | 278 | 19-38 | 565-840 | ||
303 | 334 | 25-51 | 705-1160 | |||
334 | 369 | 31-89 | 910-1450 | |||
425 | 460 | 60-130 | 1000-1550 | |||
H900 | 200 | 60 | 120 | 10-16 | 560-670 | 710 |
100 | 150 | 13-19 | 670-810 | |||
130 | 190 | 16-22 | 770-1000 | |||
160 | 220 | 19-25 | 920-1190 | |||
450 | 245 | 330 | 45-250 | 700-1200 | ||
280 | 375 | 60-250 | 1050-1900 | |||
380 | 465 | 70-250 | 1300-2500 | |||
460 | 495 | 80-250 | 1500-2600 | |||
